アルミ製車高ゲージ [JC2282]]

メーカー: JCONCEPTS
品番: JC2282
商品名: アルミ製車高ゲージ [JC2282]]
定価（税込）: ￥ 6,050
特価（税込）: ￥ 5,445
送料区分: 送料小①

送料小①

基本配送料：680円

1個口に何点含まれていても「送料小 680円」
利用規約（送料説明）の表示
※詳しい送料説明

オンラインショップの在庫状況

オンラインショップ: 在庫切れ

店舗別の在庫状況

大阪日本橋店: 在庫切れ
東京秋葉原店: 在庫切れ
福岡博多店: 在庫切れ

【有料】ラッピングサービス

ラッピングサービスを希望される場合は、商品と一緒に対応するサイズのラッピングサービスをカートに入れてご注文ください。

ラッピングをご希望の方はこちら

数量
個

この商品へのお問い合わせ

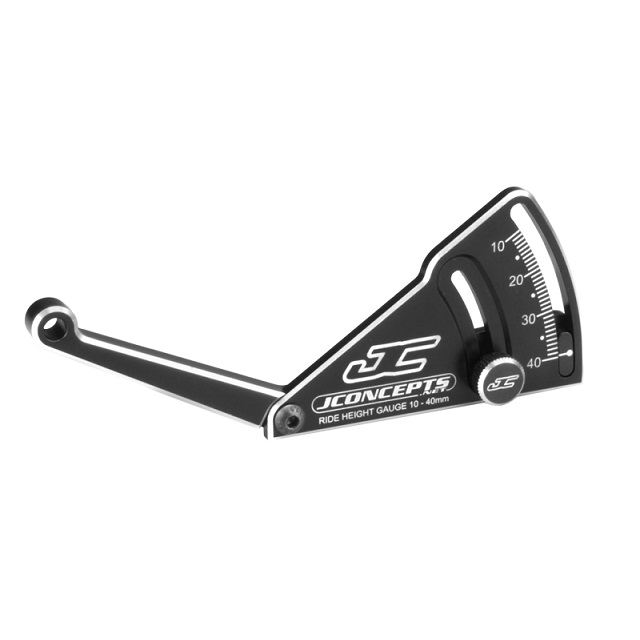

The next generation of 1/10th off-road racing revolves around setup, precision and accuracy. The JConcepts ride height gauge, manufactured from aluminum billet material is brilliantly machined to high specifications and anodized to a luster. The detailed instrument is available in either blue or black anodizing and laser etched with graduated measurements from 10-40mm for use on a variety of vehicles.

The ride height gauge comes preassembled with 4mm hardware for the pivot and 3mm setscrew and thumbscrew as the setting knob. The structure features chamfered silver edging, highlighting the design. The touch-off point on the gauge is a rounded boss and always meets the chassis at the proper angle. Each gauge comes in a latch box with foam insert which fits snugly around the instrument with heavy cushion. When racing gets serious, get precise with JConcepts.

Every setup sheet contains ride height information and the only way to achieve it properly is with a trusty gauge. The ride height gauge simply operates with 2 pivoting pieces. Checking the ride height is done by placing the base against a setting board or flat surface. The user operates the pivoting arm freely to touch off against the bottom of the vehicle chassis. At the touch point, secure the thumb screw on the gauge and check the etched marking.

To set the ride height, secure the thumbscrew on the etched number which is preferred. Place the gauge underneath the vehicle (front and rear) at the predetermined height and touch the suspension to the gauge. If a gap exists, raise shock collars to lower the ride height until it's matched to the gauge. If no gap exists or the spacing is too tight, lower the shock collars to raise the ride height to the desired amount. Most racers like a half millimeter space or a small feeling of space during a final check.

Features:

    Pre-assembled, lightweight, aluminum construction
    Available in blue or black anodizing
    Laser etched graduated measurements
    Rounded boss as a touch off point
    Chamfer highlighted edging
    Included latch box with foam cushion
